Assessment Environment

Run any ROAR assessment on your own machine, play through it, and query the data it produces — with a real database, the real backend, and no cloud credentials.

This page is for researchers who want to produce and inspect assessment data locally: to try a new task variant, check what a run actually records, or generate test data without touching a shared environment. It is the local counterpart to the cloud data workflow in Data Tools — nothing here writes to BigQuery or to any shared bucket.

If you already know your way around and just need the commands, connection details, or a query to paste, go straight to the Quick Reference.

Canonical sources

Two documents in the repository are the source of truth and are maintained alongside the code. This page is an orientation guide; where they disagree, the repository wins.

Setup & Operations guide — installing, starting, seeding, updating, troubleshooting
Research guide — producing runs, every query, metadata, CSV export, recordings

What this gives you

Every assessment in one place. Eleven assessments live in the monorepo under apps/assessments/, and they all start the same way.
Two commands to a running assessment — npm run setup once, then npm start.
The real backend against a production-shaped schema. This is not a mock or a simulator, so what you see locally is what the platform records.
Your data is yours. It is local and private, and you query it with ordinary SQL.

The research loop

Everything below supports that loop.

Before you start

Clone the monorepo if you have not already:

git clone https://github.com/yeatmanlab/roar-dashboard.git
cd roar-dashboard

You will also need:

Node dependencies — installed from the repository root; npm run setup does this for you.
Docker with Compose v2 (docker compose version should work).
- macOS: brew install --cask docker, then launch Docker Desktop.
- Ubuntu/Debian: curl -fsSL https://get.docker.com | sh, then sudo usermod -aG docker $USER and log out and back in.
Port 5433 free — the local database publishes there by default.

npm run setup checks the last two for you and prints fix-it instructions, so you do not have to verify them by hand.

First-time setup

Run this once, from the directory of the assessment you care about:

cd apps/assessments/roar-swr
npm run setup

It walks through four steps:

Checks Docker (Compose v2), printing install options if it is missing.
Checks that port 5433 is free for the local database.
Installs dependencies and builds the platform libraries. This is the slow step — expect a few minutes.
Creates your taskVariantParameters.json from the committed example. It never overwrites an existing one.

Docker and the port are checked but not required to finish, so you can prepare the repository now and sort out Docker later. Any blocker is repeated in a summary at the end.

Everyday use

npm start

That is all you need from then on. It brings the shared services up if they are not already running, then starts this assessment's dev server. Open http://localhost:8000 to play.

One shared stack, many assessments

The database, the backend, and the Firebase emulators are one shared Docker stack that keeps running in the background. Only the dev server on port 8000 is per-assessment, and only one assessment runs at a time.

Three things follow from that:

Switching assessments tears nothing down — only the dev server changes.
Runs from several assessments coexist in the same database.
Each additional assessment needs its variants seeded once, because automatic seeding only happens for whichever assessment brought the stack up.

What's running, and where

Process	URL
Assessment dev server — where you play	http://localhost:8000
ROAR backend	http://localhost:4000
PostgreSQL — where you query	`localhost:5433`
Firebase Auth emulator	http://localhost:9099
Firebase Storage emulator	http://localhost:9199
Firebase Emulator UI — browse recordings	http://localhost:9000

Only two of these matter day to day: 8000 to play, 5433 to query.

The two Firebase emulators are visible in the Emulator UI at http://localhost:9000. Only Authentication and Storage run in this environment — the other cards showing Off is expected, not a sign that something failed:

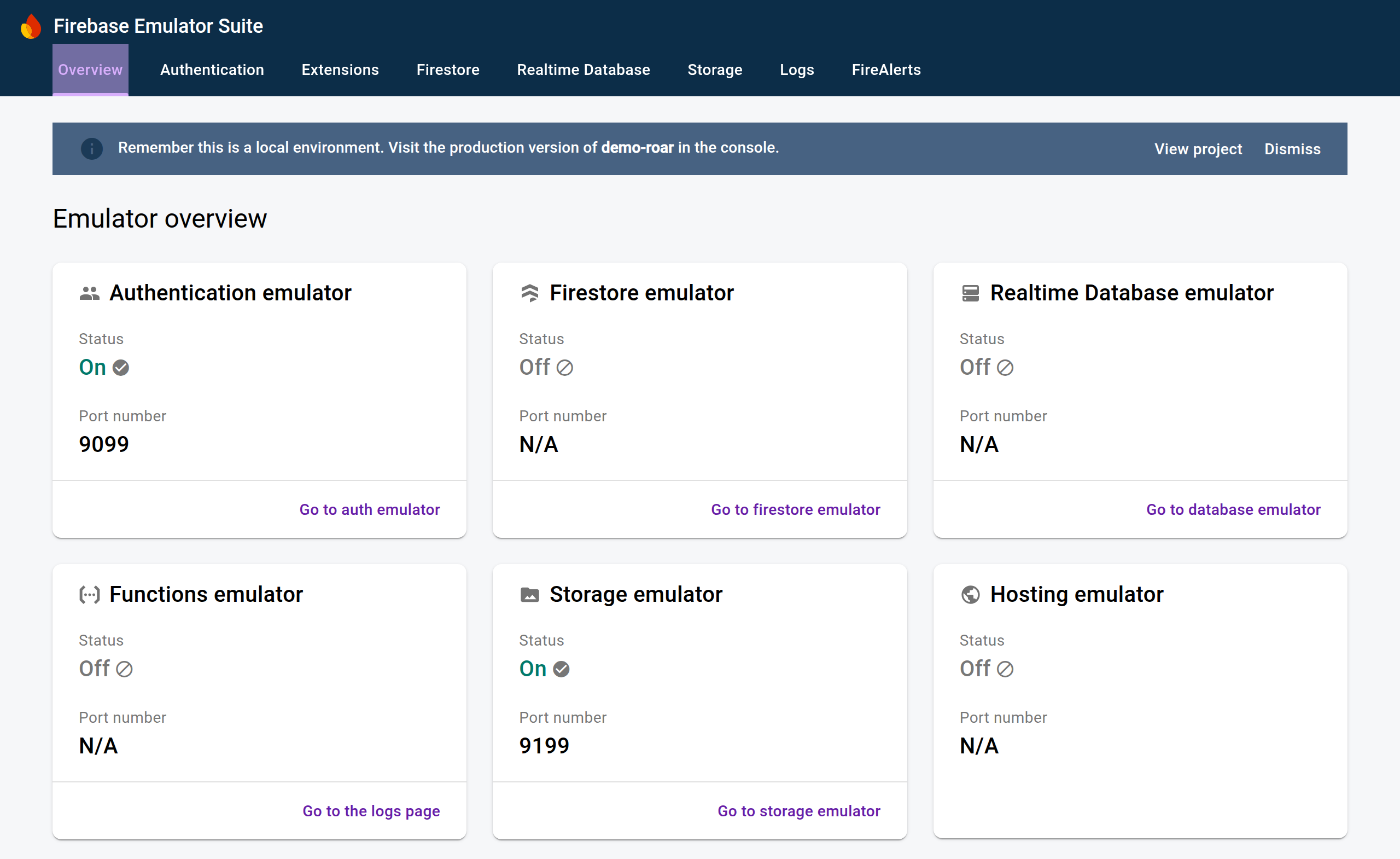

The Firebase Emulator Suite overview, with the Authentication emulator on port 9099 and the Storage emulator on port 9199 both running

Port 5433, not 5432

The local database deliberately avoids the standard PostgreSQL port so it can run alongside a permanent development database on 5432. Every connection string below uses 5433.

The commands you need

Run all of these from the assessment's directory. The other scripts in package.json are for CI and platform developers — ignore them.

Command	What it does	When to use it	Data
`npm run setup`	Check prerequisites, install, build libraries, create your config	Once, on a fresh clone	safe
`npm start`	Bring the stack up if needed, start this assessment's dev server	Every time you sit down to work	safe
`npm run seed:tasks`	Seed newly added variants into the running database	After editing your config	safe
`npm run update`	Rebuild the platform libraries on your machine	After a pull changes the SDK, schema, or scoring tables	safe
`npm run rebuild`	Force a clean rebuild of the Docker images	After a pull changes the backend or migrations	safe
`npm stop`	Stop everything and delete the database	When you want a completely clean slate	deletes
`npm restart`	Full teardown and delete the database, then start fresh	When the stack is wedged	deletes

Keeping your data safe

Read this before you stop anything

npm stop and npm restart delete your database — every run, trial, score, and uploaded recording. They do not mean what "stop" and "restart" usually mean.

Action	Stops	Your runs, trials, scores	Seeded variants
Ctrl+C	Only the dev server on port 8000	kept — the stack keeps running in the background	kept
`TRUNCATE app.runs CASCADE;` (in `roar_assessment`)	Nothing	cleared, on purpose — trials, scores and interactions all cascade	kept, nothing to re-seed
`npm stop`	Every Docker service	deleted, including uploaded recordings	deleted
`npm restart`	Everything, then starts fresh	deleted	deleted, then re-seeded

Day to day you only need the first: Ctrl+C, walk away, come back, npm start. It reattaches to the same database and skips straight to the dev server.

Both destructive commands prompt for confirmation, and declining is completely clean — nothing is torn down, nothing starts, and no error is reported. Say no if you are unsure.

Producing a run

Open http://localhost:8000. On load, the page:

Signs you in anonymously against the Firebase Auth emulator.
Provisions an anonymous ROAR participant.
Resolves a task variant.
Launches the assessment.

Playing it through writes a run, its trials, and — for scored assessments — its scores. Play the assessment, and rows appear. There is nothing to submit or POST by hand.

Anonymous participants, and what a refresh does

Your anonymous identity is persisted by the browser, so:

A page refresh keeps the same participant. Repeated runs in the same browser accumulate under one identity, which is usually what you want while iterating.
A fresh participant comes from a different browser or profile, an incognito window, cleared site data, or an emulator wipe (npm restart or npm stop — the Auth emulator is in-memory and reset by both).

Anonymous runs have no participant name, but they do get an assessment_pid, which is the identifier worth querying on.

Choosing what runs: variants

A task is the assessment (Phonological Awareness). A variant is one configured version of it (English, adaptive, scoring version 5).

The variant configuration file

Each assessment reads a local taskVariantParameters.json to decide which variants to seed. The file is not committed — it is yours — and is required before the first start. npm run setup creates it from the committed example.

[
  {
    "variantName": "English-v7",
    "params": {
      "lng": "en",
      "scoringVersion": 7,
      "userMode": "shortAdaptive",
      "consent": true,
      "skipInstructions": true
    }
  }
]

The committed taskVariantParameters.example.json beside it documents every parameter with its valid values and sensible defaults. Start there.

For SWR, lng does something extra: it decides which task the variant belongs to. English and Spanish are separate tasks, not one task with a language setting — which is why SWR's example file holds five entries, one per language.

Validation happens when the variant is seeded, and a missing file, an unknown parameter key, or an invalid value fails with an error that names the offending key. Variants are matched by name, so seeding is idempotent and additive: an existing variant is skipped and a new entry is added alongside it.

Changing a variant's parameters

Because variants are matched by name, editing the parameters under an existing variantName will not update the seeded variant. Give the changed variant a new name.

Seeding a new variant without losing data

Editing the file does not seed it

The seed runs automatically only once, when the stack first comes up. Edit taskVariantParameters.json afterwards and run npm start again, and nothing happens — the stack is already up, so npm start skips straight to the dev server.

npm restart does re-seed, but only because it deletes the database first, taking all of your generated data with it.

Use npm run seed:tasks instead. It runs the same additive seeder against the live database:

# 1. Edit taskVariantParameters.json — add a new entry
# 2. Seed it into the running environment (no teardown, no data loss)
npm run seed:tasks
# 3. Reload the assessment, or use the variant picker

The variant picker

In development and staging — never in production — a small variant picker appears in the top-right corner of the assessment: a dropdown of the task's published variants. Selecting one reloads the page with that variant, preserving your other URL parameters.

It lists the same variants you seeded, so pair it with npm run seed:tasks: add a variant, seed it, reload, and it is in the dropdown. If a variant you expect is missing, it was never seeded.

The picker is scoped to the task(s) this assessment's dev server serves, so even with every assessment seeded into the shared database, one assessment's picker never shows another's variants.

Which variant runs when you don't name one

With no variantId in the URL, the assessment resolves its declared default variant — a per-task name in the assessment's serve/serve.js:

// apps/assessments/roar-swr/serve/serve.js — one entry per language task
const DEFAULT_VARIANT_NAMES = {
  [SWR_LANGUAGES.en.taskId]: "English-v7",
  [SWR_LANGUAGES.es.taskId]: "Spanish-v1",
  // …it, pt, de
};

Resolution order is: variantId in the URL, then that declared default matched by name, then the oldest published variant if no default is declared.

A mismatch is quiet

The committed values are placeholders taken from the example config. If you seed variants under names of your own, the declared default stops matching — and locally that is a console warning, not an error. You still get a run, just not the one you meant.

The warning lists every published variant name for the task, so check the browser console whenever a run does not look like the configuration you expected. To fix it, edit DEFAULT_VARIANT_NAMES to match your names.

Keep variant names simple — hyphenated ASCII such as English-v7 rather than English (v7) — because names are matched by name and also passed on the command line.

URL parameters

Game parameters — adaptivity, item selection, language, scoring version — always come from the seeded variant. URL parameters only choose which variant runs and attach participant context.

Parameter	Purpose
`variantId`	Run a specific seeded variant
`participant`	Participant ID (PID) to associate with the run
`grade`	Participant grade
`birthyear`, `birthmonth`, `age`, `agemonths`	Participant age or date-of-birth context
`labId`	Lab identifier
`taskVersion`	Task version string (defaults to `1.0`)

http://localhost:8000/?variantId=<id>&participant=demo-01&grade=3

Demographic parameters are not run_demographics

That table is populated from rostering and stays empty for anonymous local runs. It also lives in roar_core, unlike every other run_* table. If an assessment records these values at all, they land in the run's metadata.

Querying your data

Two databases

Knowing which database holds what is the thing that most often trips people up.

Data	Database	Tables
Participants, tasks, variants	`roar_core`	`app.users`, `app.tasks`, `app.task_variants`, `app.task_variant_parameters`
Runs, trials, scores, interactions	`roar_assessment`	`app.runs`, `app.run_trials`, `app.run_scores`, `app.run_trial_interactions`
Runs and scores, joinable against participants and tasks	`roar_core`	`app_assessment_fdw.runs`, `app_assessment_fdw.run_scores`

In plain terms: core is "who and what", assessment is "what happened".

The third row is what makes cross-database work possible — runs and scores are mirrored into roar_core, so a single query can join a score to the participant and task that produced it. run_trials is not mirrored, so trial-level data is only queryable in roar_assessment.

Every table lives in the app schema, so prefix every table name with app. (or app_assessment_fdw. for the two mirrors).

Connecting with PgWeb

PgWeb is a SQL client that runs in a browser tab — no configuration files, no desktop application to set up.

# macOS
brew install pgweb
# Linux: download the release binary from https://github.com/sosedoff/pgweb/releases

There are two ways to point it at the database. Both end up in the same interface, so use whichever you find easier.

Option 1: fill in the connection form

Run pgweb with no arguments. It opens http://localhost:8081 and shows a connection form — choose the Standard tab and enter:

Field	Value
Host	`localhost`
Port	`5433`
Username	`postgres`
Password	leave blank
Database	`roar_core` or `roar_assessment`
SSL Mode	`disable`

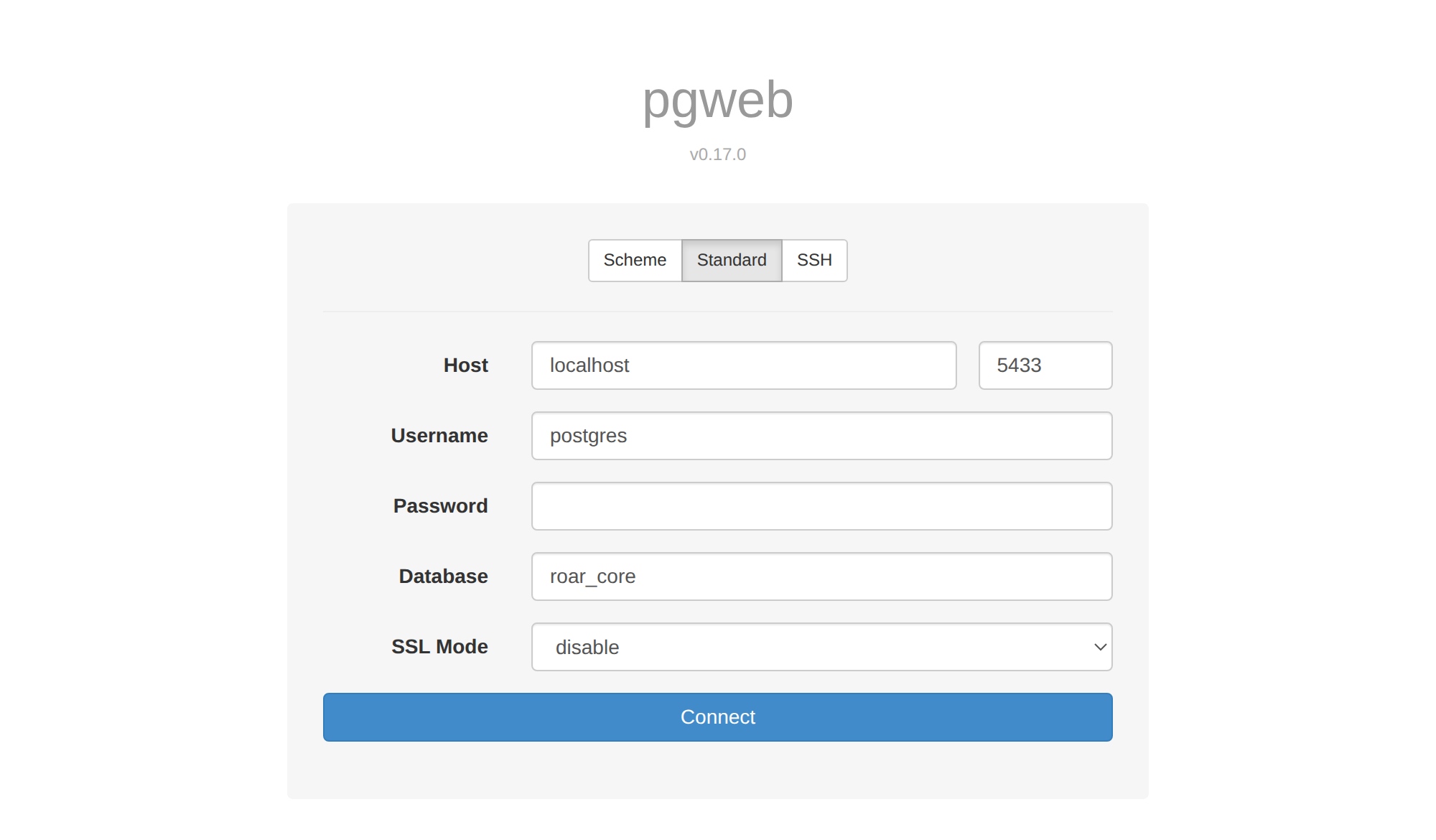

The PgWeb connection form, filled in for the local assessment database

Then click Connect. To work in the other database, change Database and reconnect — or start a second PgWeb on another port so you can keep both open at once:

pgweb --listen 8082

Option 2: pass the connection string

If you would rather not retype the form, put the details in the command. This also makes it easy to open both databases at once, on two ports:

pgweb --url "postgres://postgres@localhost:5433/roar_core?sslmode=disable"
# → http://localhost:8081

pgweb --url "postgres://postgres@localhost:5433/roar_assessment?sslmode=disable" --listen 8082
# → http://localhost:8082

Setting	Value
Host	`localhost`
Port	`5433`
Username	`postgres`
Password	(none)
SSL mode	`disable`

The password is blank on purpose: this database is local, disposable, and holds no real participant data. If you prefer other tools, psql, pgcli, and PgAdmin all connect with the same details.

The query catalog

What you want to know	Run it in
Which variants did I seed, and what are their IDs?	`roar_core`
All runs for a task, with the participant	`roar_core`
Trial-by-trial detail for one run	`roar_assessment`
Scores for completed runs	`roar_assessment`
Run summary — trial counts, engagement, reliability	`roar_assessment`
Engagement events — focus/blur, fullscreen	`roar_assessment`
Scores joined to participant, task, and run metadata	`roar_core`

All seven are written out ready to paste in the Quick Reference. The two you will use most are below.

Which runs exist, and who produced them

Run in roar_core:

SELECT
  r.id,
  u.assessment_pid,
  r.is_anonymous,
  r.completed_at,
  r.reliable_run,
  r.metadata
FROM app_assessment_fdw.runs r
JOIN app.users u ON u.id = r.user_id
JOIN app.task_variants tv ON tv.id = r.task_variant_id
JOIN app.tasks t ON t.id = tv.task_id
WHERE t.slug = 'swr'          -- English only; LIKE 'swr%' for all five
  AND r.deleted_at IS NULL
ORDER BY r.created_at DESC;

What happened inside one run

Run in roar_assessment, using a run_id from the previous query:

SELECT
  trial_num_total,
  item,
  correct,
  response,
  response_time_ms,
  subtask,
  assessment_stage
FROM app.run_trials
WHERE run_id = '<your-run-id>'
ORDER BY trial_index;

Always filter soft-deleted rows

Records are soft-deleted rather than removed, so include AND deleted_at IS NULL or you may pull rows that are meant to be gone.

Two things that silently mislead

Task slugs are not always a single value. Some assessments treat language as a separate task — SWR is five tasks, not one (swr, swr-es, swr-it, swr-pt, swr-de) — and multi-task assessments have several slugs. Matching with = gives a clean-looking result set that is quietly incomplete:

WHERE t.slug = 'swr'      -- misses every Spanish run, silently
WHERE t.slug LIKE 'swr%'  -- matches the family

Assessment-specific fields live in metadata. Known trial fields become real columns; everything else a trial emits lands in run_trials.metadata. Run-level context lands in runs.metadata. run_scores has no metadata column — join a score to its run and read the run's metadata instead.

Because trial metadata is assessment-specific, discover the keys before extracting them:

SELECT DISTINCT jsonb_object_keys(metadata) AS metadata_key
FROM app.run_trials
WHERE run_id = '<your-run-id>'
  AND metadata IS NOT NULL;

Then pull fields alongside real columns with metadata ->> 'fieldName' for text, or metadata -> 'nested' to keep JSON. To filter, ->> compares as text and @> does a JSON containment match.

Exporting to CSV

Any query above can be exported.

PgWeb — run the query, then use the export control on the results toolbar and choose CSV. Best for one-off exports while exploring.

psql \copy — scriptable, and it writes to the machine where psql runs, so the file lands in your current directory. The whole command must be on one physical line:

\copy (SELECT trial_num_total, item, correct FROM app.run_trials WHERE run_id = '<your-run-id>' ORDER BY trial_index) TO 'trials.csv' WITH (FORMAT csv, HEADER)

One-liner from the shell — the same result, handy for repeatable exports:

psql "postgres://postgres@localhost:5433/roar_assessment?sslmode=disable" --csv \
  -c "SELECT trial_num_total, item, correct FROM app.run_trials WHERE run_id = '<your-run-id>' ORDER BY trial_index" \
  > trials.csv

Pick the database that matches the query: trial-level exports run against roar_assessment, while participant and score joins run against roar_core. For a single CSV combining participants, scores, and run metadata, export the cross-database join from roar_core.

Resetting your generated data

To clear the runs, trials, scores, and interactions you have generated while keeping your seeded variants, truncate the run tables in roar_assessment:

TRUNCATE app.runs CASCADE;

Trials, scores, and interactions all cascade from runs, so this one statement clears everything you generated. Your tasks and variants in roar_core are untouched, so there is nothing to re-seed — far faster than a full teardown.

Switching between assessments

The stack is shared and persistent, so moving from one assessment to another tears nothing down:

Ctrl+C — frees port 8000; the stack and your data stay up.
cd ../roar-pa (or whichever assessment you want).
npm run seed:tasks — first visit only. Create its config first if you never have, by copying its example file.
npm start — same stack, same database.

Switching back needs no re-seed. Once an assessment is seeded, returning to it is just Ctrl+C, cd, npm start. You do not need to run npm run setup again — and doing so mid-switch would spuriously report port 5433 as in use, which is only your own running stack.

Recordings (audio and video assessments)

Assessments that capture audio or video — Read Aloud, for instance — upload through the SDK to the local Firebase Storage emulator, so no cloud credentials are needed and no real bucket is touched.

Browse them in the Emulator UI at http://localhost:9000 under the Storage tab. The emulated bucket is demo-roar.appspot.com, created on the first upload — each assessment that has uploaded anything appears as a top-level folder named after its task.

The Storage tab of the Firebase Emulator UI, showing the demo-roar.appspot.com bucket with a roar-readaloud folder

Recordings are written to a deterministic path:

{taskId}/{participantId}/{assessmentPid}/{administrationId}/{runId}/{filename}

The third segment falls back to participantId when a run has no PID, so for an anonymous local run those two segments often match.

Clicking down through those folders gets you to the recordings themselves. The breadcrumb shows the whole path, and each file carries the size and content type the SDK uploaded it with:

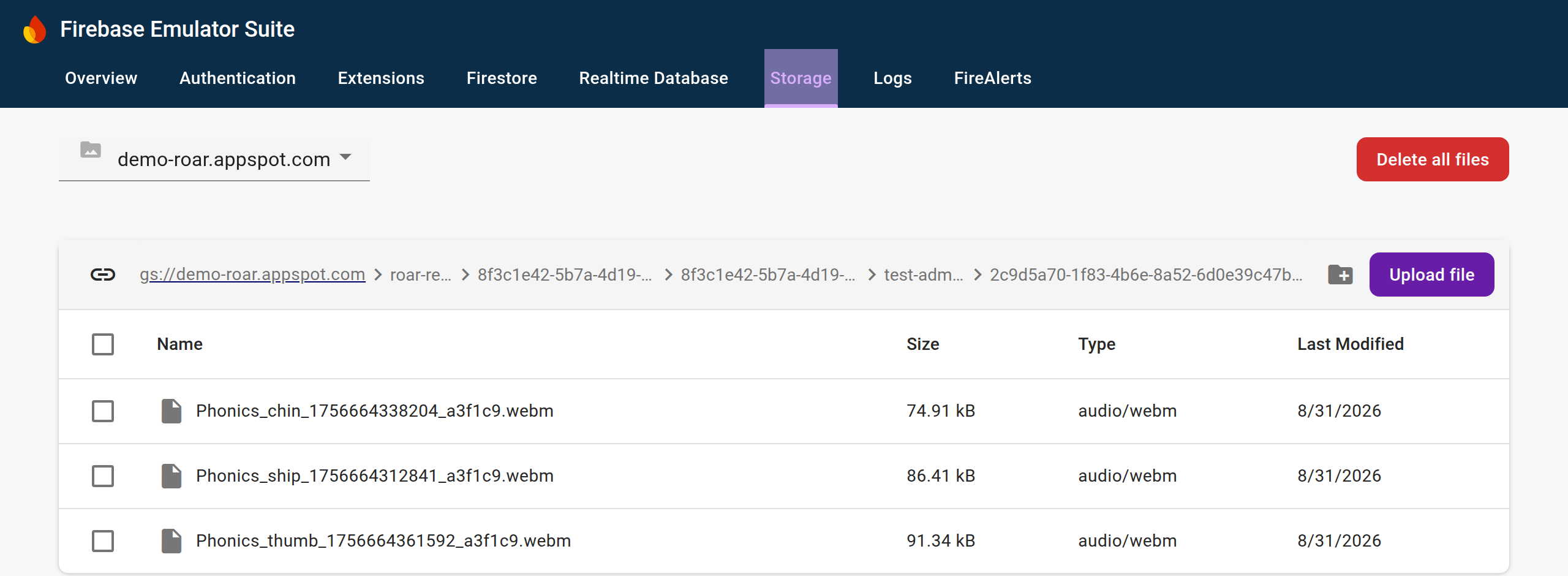

The nested run folder in the Storage tab, listing three audio/webm recordings with their sizes

Each recording's gs:// reference is also written onto its trial. It is not a standard trial column, so it lands in run_trials.metadata — for Read Aloud, under the key uploadUrl.

Recordings are held in memory

The Storage emulator has no import or export configured. Recordings survive Ctrl+C, which stops only the dev server, but are cleared when the emulator container restarts (npm restart) or the environment is torn down (npm stop). Download anything you need to keep.

Keeping current after a pull

What changed in the pull	Run	Why
The SDK, assessment schema, or scoring tables	`npm run update`	Your dev server bundles these from your machine — then restart the dev server
The backend, migrations, API contract, Dockerfile, or root dependencies	`npm run rebuild`	These live inside the Docker images, and Docker caches aggressively
The assessment schema	both	It is used by the dev server and the backend
You are not sure — it was a big pull	`npm run rebuild`, then `npm run update`	The safe combination

Neither command deletes anything, and the environment does not need to be stopped first for a rebuild. The symptom that means you need one of these is a change you know landed that is not taking effect.

Troubleshooting

Symptom	What it means, and the fix
"Port 5433 is already in use"	Usually a leftover container — `docker ps \| grep 5433`. Stop it, or start with `ASSESSMENT_PG_PORT=<port> npm start`.
"Port 8000 is already in use"	A previous dev server, possibly for another assessment, is still running. Stop that process.
"taskVariantParameters.json not found"	The config step was skipped. Run `npm run setup`, or copy the example file yourself.
Migration container failed / "Unknown task"	The assessment is not registered, or a parameter is invalid. The error names the available tasks and the offending key. Fix it, then `npm run rebuild` and `npm start`.
"My new variant didn't show up"	Editing the config does not re-seed. Run `npm run seed:tasks` — not `npm restart`, which would wipe your data.
The assessment isn't loading the variant I expected	The declared default probably does not match your variant names. Check the browser console; the warning lists every published variant.
A code change isn't taking effect	Host library change → `npm run update`. Backend or migration change → `npm run rebuild`.
The Firebase emulator won't start / "failed to bind host port 9000"	Another Firebase emulator already owns 9000, 9099 or 9199 — most often a persistent platform-dev stack. Stop it, then `npm start`. If the container was created during the failed attempt it can restart without republishing its ports, so recreate it: `docker compose -f docker-compose.assessment.yml up -d --force-recreate firebase-emulator`
Stale containers, name or port conflicts on start	`npm start` clears known stale containers first. Still wedged? `npm stop` then `npm start` — but that deletes your data.
`docker stop` fails with "permission denied" (Linux)	`npm stop` falls back to direct process kills and prints the exact `sudo kill` command to run. Run it, then re-run `npm stop`.

Two messages during seeding look like problems but are not:

Launch sandbox administration not found — skipping assignment — four assessments declare a default variant for the dashboard's development sandbox, which is not seeded in this environment. Your variants are still seeded and playable.
Config "…" names defaultVariant "…", which is not in the parameters file — you renamed your variants, so only that sandbox assignment was skipped. It does not affect what localhost:8000 loads.

Where to go next

The Quick Reference, for the commands, connection details, and every query on one page.
The Setup & Operations guide and Research guide in the repository, for the complete reference.
Data Tools for working with ROAR's cloud data in BigQuery.
Data Cleaning for the shared conventions on preparing ROAR data for analysis.

If something on this page was unclear enough that you had to ask someone, that is worth reporting — open a pull request on roar-docs, or raise it with the platform team.
